Forged Fittings

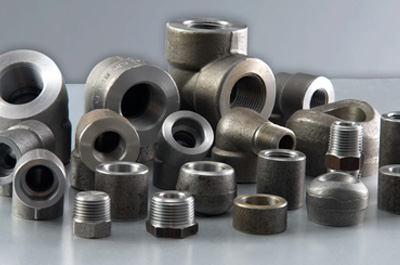

At Piping Solutions, we stock & supply different types of forged fittings from a wide range of quality manufacturers. Our Forged Fittings can come in Elbows, Street Elbows, Tees, Crosses, Couplings, Reducers, Outlets, Inserts, Caps, Unions, Bushings, and Plugs. . We can provide you the carbon, alloy, chrome & other fittings supplies you need to complete your project on time and on budget.

Materials & Specifications

  • Standard Grades: Carbon, Stainless, Chrome Moly, Low Temperature carbon steel.
  • Special Grades: Inconel, Incoloy, Hastelloy, Titanium, Monel & Alloy 20
  • Types: Elbows, Street Elbows, Tees, Crosses, Full & Half Couplings, Reducers, Olets, Inserts, Caps, Unions, Bushings, Plugs reducer insert, & Pipe nipples etc,
  • End Connection: NPT, SW & BSPT
  • Sizes: 1/8” to 4”
  • Pressures: 2000#, 3000#, 6000# – special 9000# and up
Carbon Steel A105
Low Temp Carbon Steel A 350 LF2
Chrome Moly A182: F5, F9, F11, F12, F22, F91
Stainless Steel A 182: 304/304L, 316/316L, 304H, 316H, 309, 310S, 317L, 321/321H, 347/347H, 348/348HF44,F51,F53,F55
Nickel Alloys Nickel 200 ,Nickel 201, Monel 400 , Monel 500, Inconel 800, Inconel 825, Inconel 600, Inconel 625 ,Inconel 601, Hastelloy 276 , Alloy 20

Any Special & Exotic materials on request
